Our Project | Private Home from Vietnam with Ascenda Lift Size M

Private Home from Vietnam with Ascenda Lift Size M| ภาพตัวอย่างลิฟท์บ้าน

PROJECT DETAIL

INSTALLATIONS

  • Though the Floor (TLF)

LIFT SIZE

  • Size M

STANDING SPACE (mm.)

  • 700 x 800

CABIN CUT-OUT (mm.)

  • 818 x 1,256

HATCH CUT-OUT (mm.)

  • 930 x 1,332

GATE TYPE

  • -

GATE CUT-OUT (mm.)

  • -

DOUBLE GATE CUT-OUT (mm.)

  • -

FULL OPTIONS

  • 1. Fully Automatic Saloon

FULL OPTIONS

  • 1. Fully Automatic Saloon
  • 2. Intuitive Handrail Control
  • 3. Fold Down Seat
  • 4. Mirror Ceiling & In-Built Fan

FULL OPTIONS

  • 2. Intuitive Handrail Control

FULL OPTIONS

  • 3. Fold Down Seat

FULL OPTIONS

  • 4. Mirror Ceiling & In-Built Fan

CERTIFIED BY

  • 1. EU Standard : EN81-41
  • 2. USA Standard : ASME 17.1

CERTIFIED BY

  • 1. EN81-41
  • 2. ASME 17.1
  • 3. ISO 9001:2015
  • 4. ISO 14001:2015
  • 5. Machinery Directive

CERTIFIED BY

  • 3. ISO 9001:2015
  • 4. ISO 14001:2015

CERTIFIED BY

  • 5. Machinery Directive

Our Photo and Video

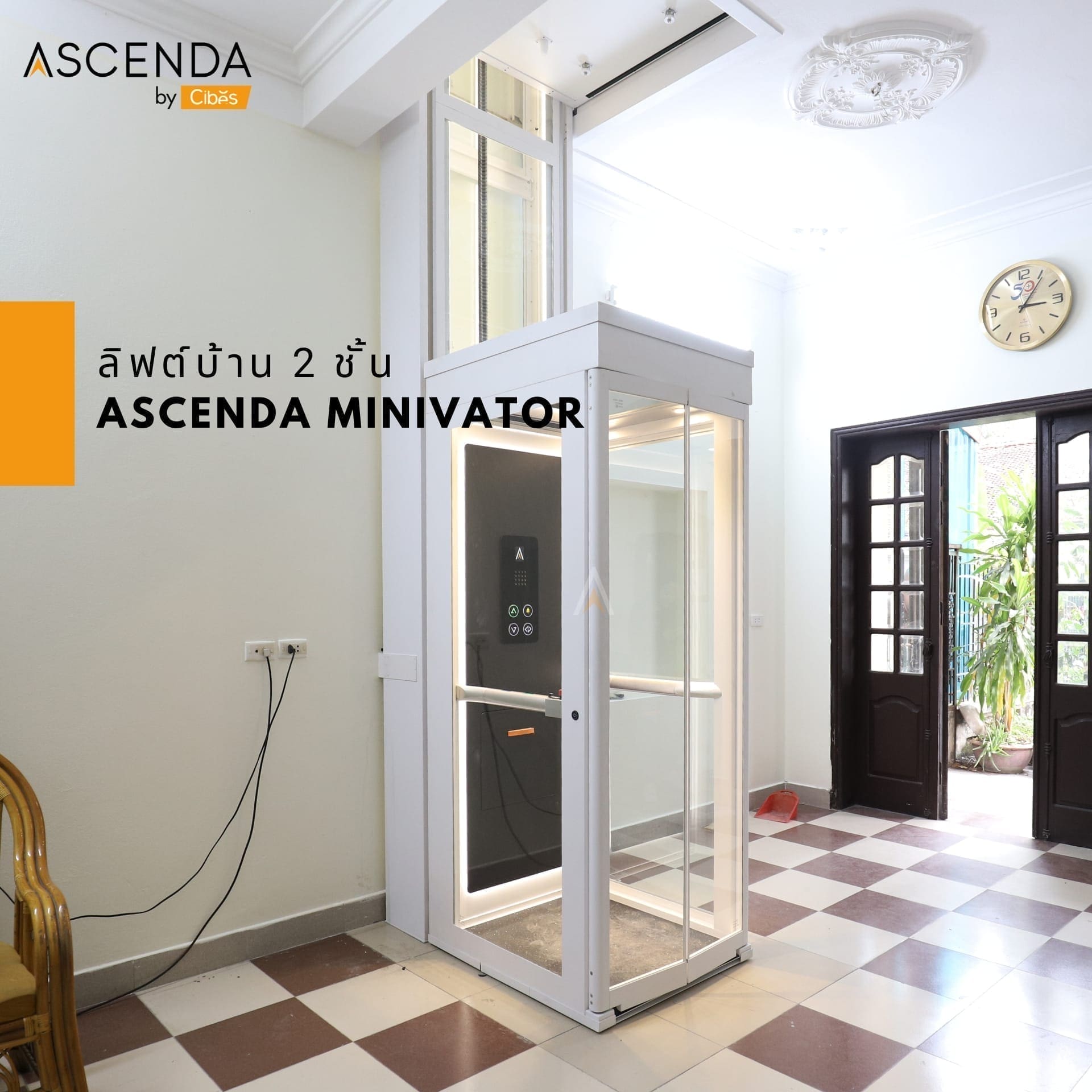

Ascenda size m vietnam 400 x 305 px

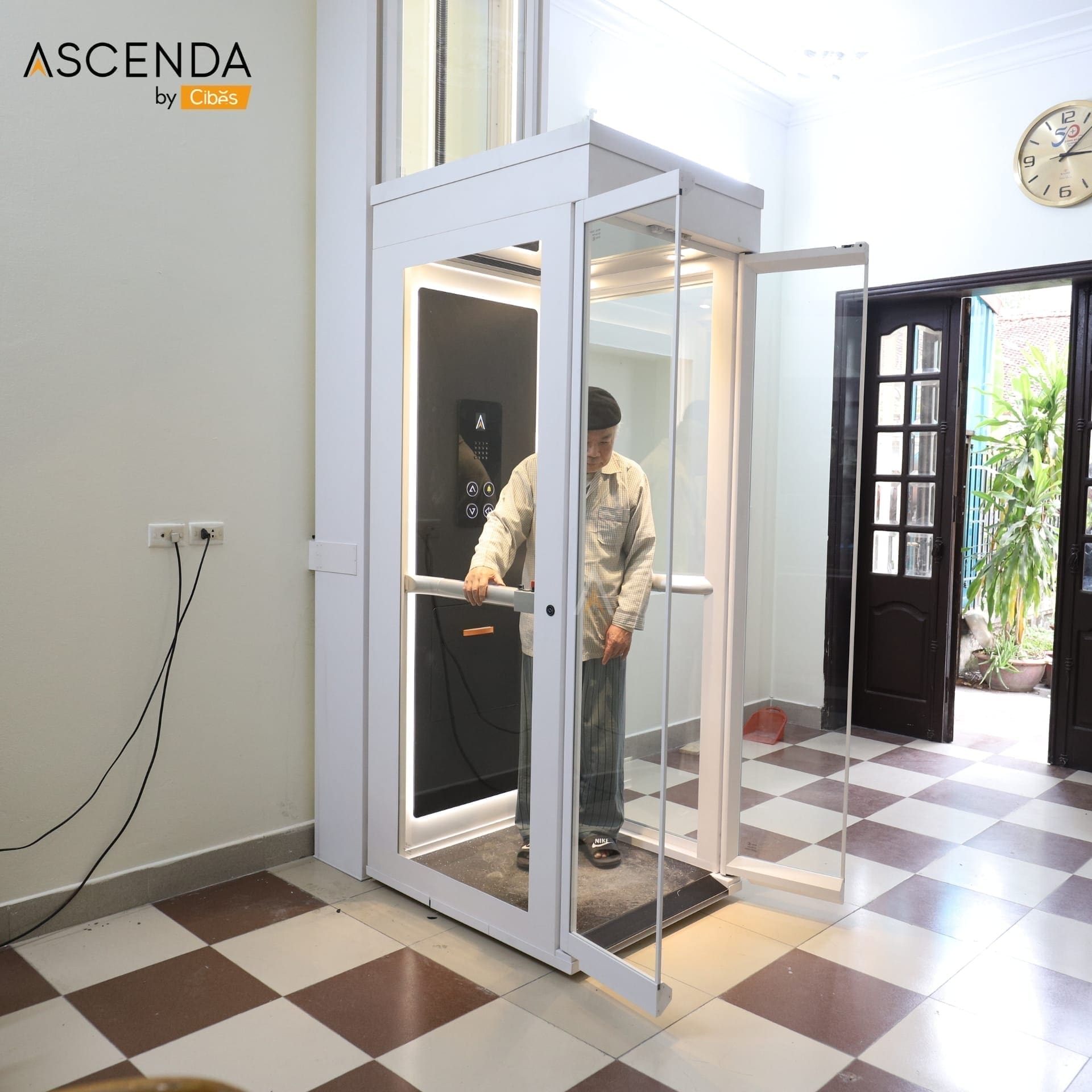

Ascenda size m vietnam 400 x 305 px 2

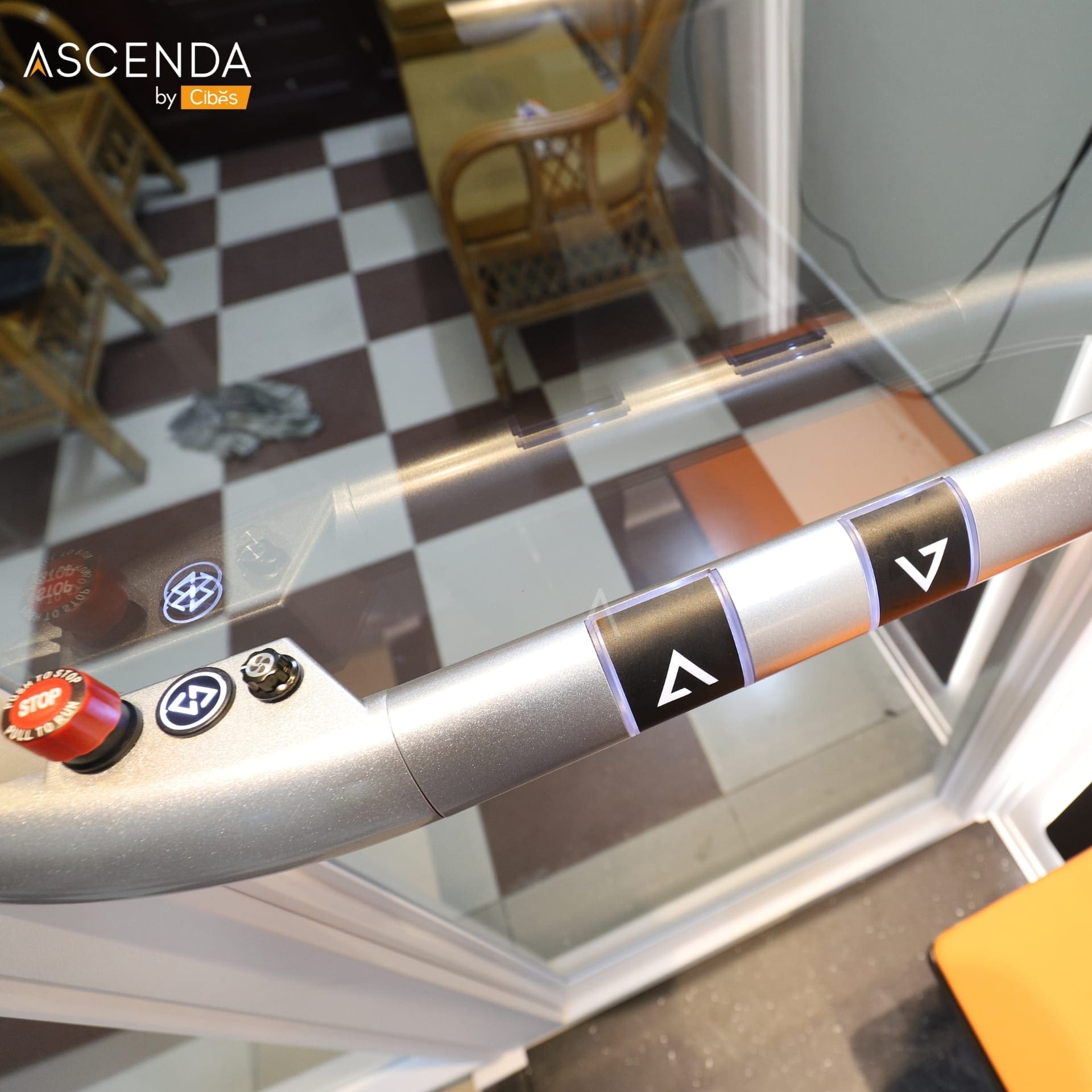

Ascenda size m vietnam 400 x 305 px5

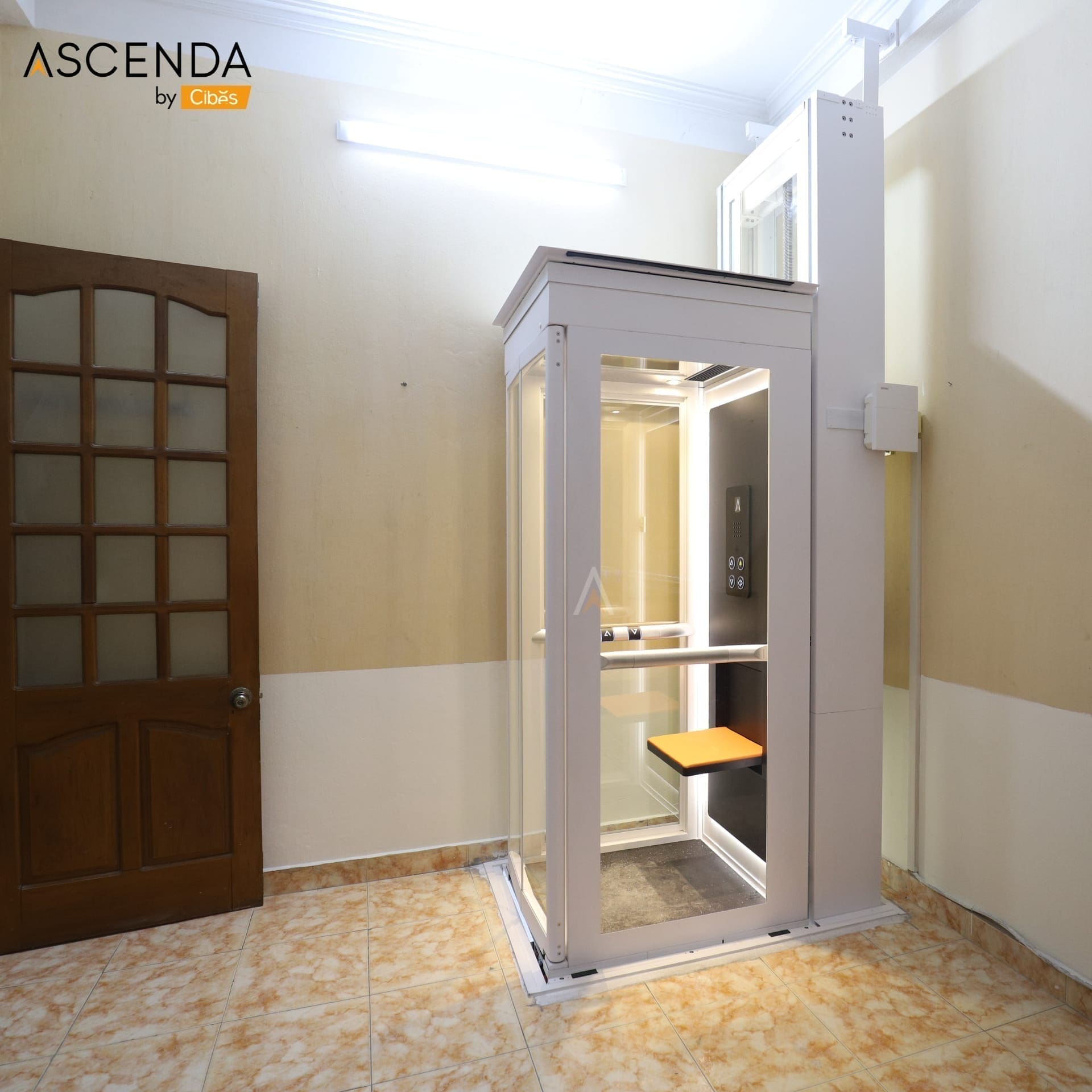

Ascenda size m vietnam 400 x 305 px 3

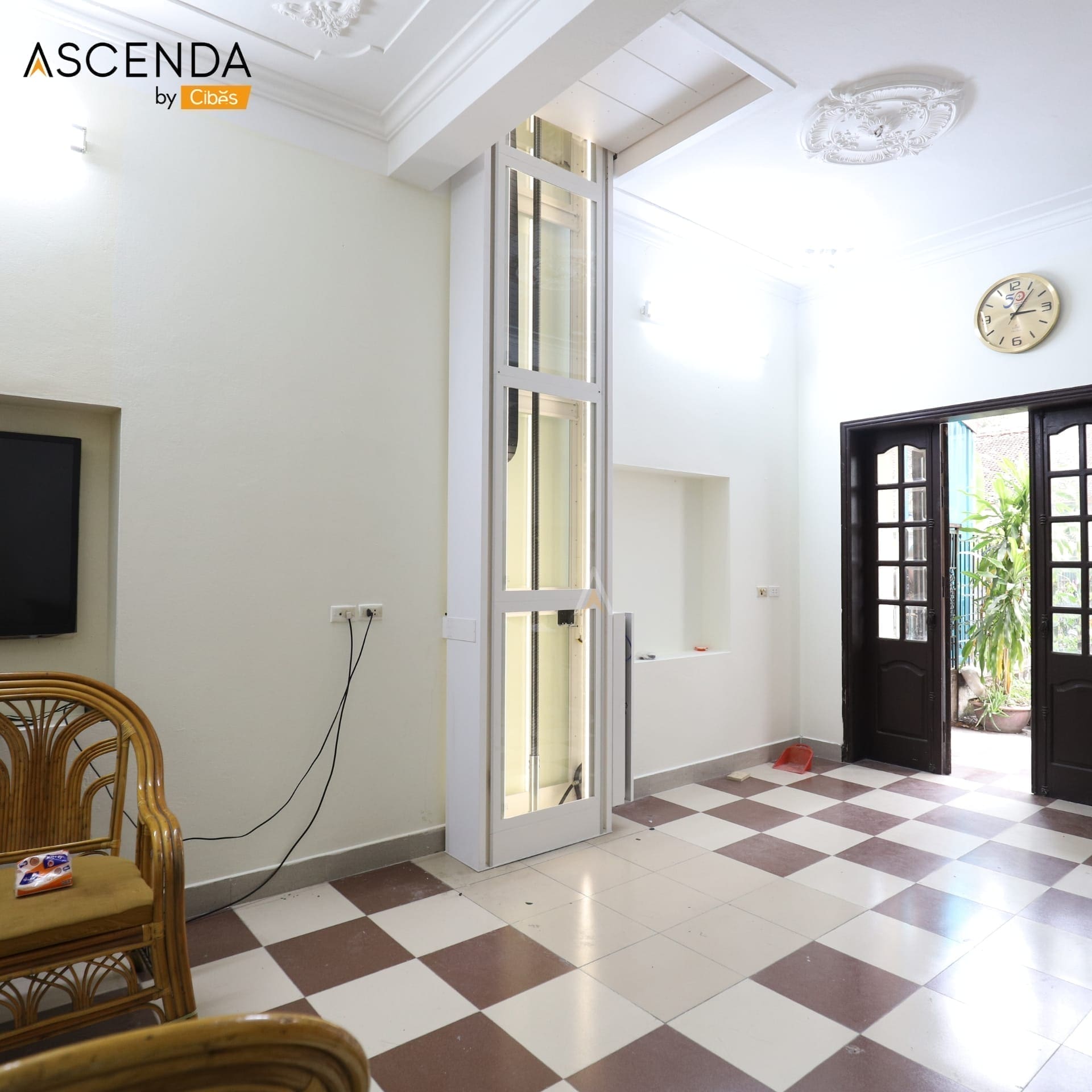

Ascenda size m vietnam 400 x 305 px4

TECHNICAL SPECIFICATIONS

DRIVEN TYPE

  • EcoSilent 2.0

DRIVE SYSTEM

  • Screw-Driven

SCREW TYPE

  • Tyapezoidal, 24 mm

MOTOR

  • PMSM UltraQuiet (2.9 kW)

MAXIMUM TRAVEL

  • 4,270 mm

PIT DEPTH

  • 0 mm

LIGHTING TYPE

  • Automatic EcoSaving LED

POWER SUPPLY

  • 240V, 60Hz

MAXIMUM LOAD

  • 350 kg.

MAXIMUM SPEED

  • 0.15 m./s. (9 m./min)

MAINTENCE

  • 1 time per Year

WARRANTLY

  • 2 Years
