Our Project | Ascenda China Showroom (Shanghai) – Size M (White Shelf)

Ascenda China Showroom (Shanghai) – Size M (White Shelf)| ภาพตัวอย่างลิฟท์บ้าน

PROJECT DETAIL

INSTALLATIONS

  • Though the Floor (TLF)

LIFT SIZE

  • Size M

STANDING SPACE (mm.)

  • 700 x 800

CABIN CUT-OUT (mm.)

  • 818 x 1,256

HATCH CUT-OUT (mm.)

  • 930 x 1,332

GATE TYPE

  • -

GATE CUT-OUT (mm.)

  • -

DOUBLE GATE CUT-OUT (mm.)

  • -

FULL OPTIONS

  • 1. Fully Automatic Saloon

FULL OPTIONS

  • 1. Fully Automatic Saloon
  • 2. Intuitive Handrail Control
  • 3. Fold Down Seat
  • 4. Mirror Ceiling & In-Built Fan

FULL OPTIONS

  • 2. Intuitive Handrail Control

FULL OPTIONS

  • 3. Fold Down Seat

FULL OPTIONS

  • 4. Mirror Ceiling & In-Built Fan

CERTIFIED BY

  • 1. EU Standard : EN81-41
  • 2. USA Standard : ASME 17.1

CERTIFIED BY

  • 1. EN81-41
  • 2. ASME 17.1
  • 3. ISO 9001:2015
  • 4. ISO 14001:2015
  • 5. Machinery Directive

CERTIFIED BY

  • 3. ISO 9001:2015
  • 4. ISO 14001:2015

CERTIFIED BY

  • 5. Machinery Directive

Our Photo and Video

Ascenda Philippines Showroom Home lift pitless and saving space
Ascenda Philippines Showroom Home Lift 2 floors
Ascenda Philippines Showroom Shelftless
Ascenda Philippines Showroom Saloon Doors Automatic Doors

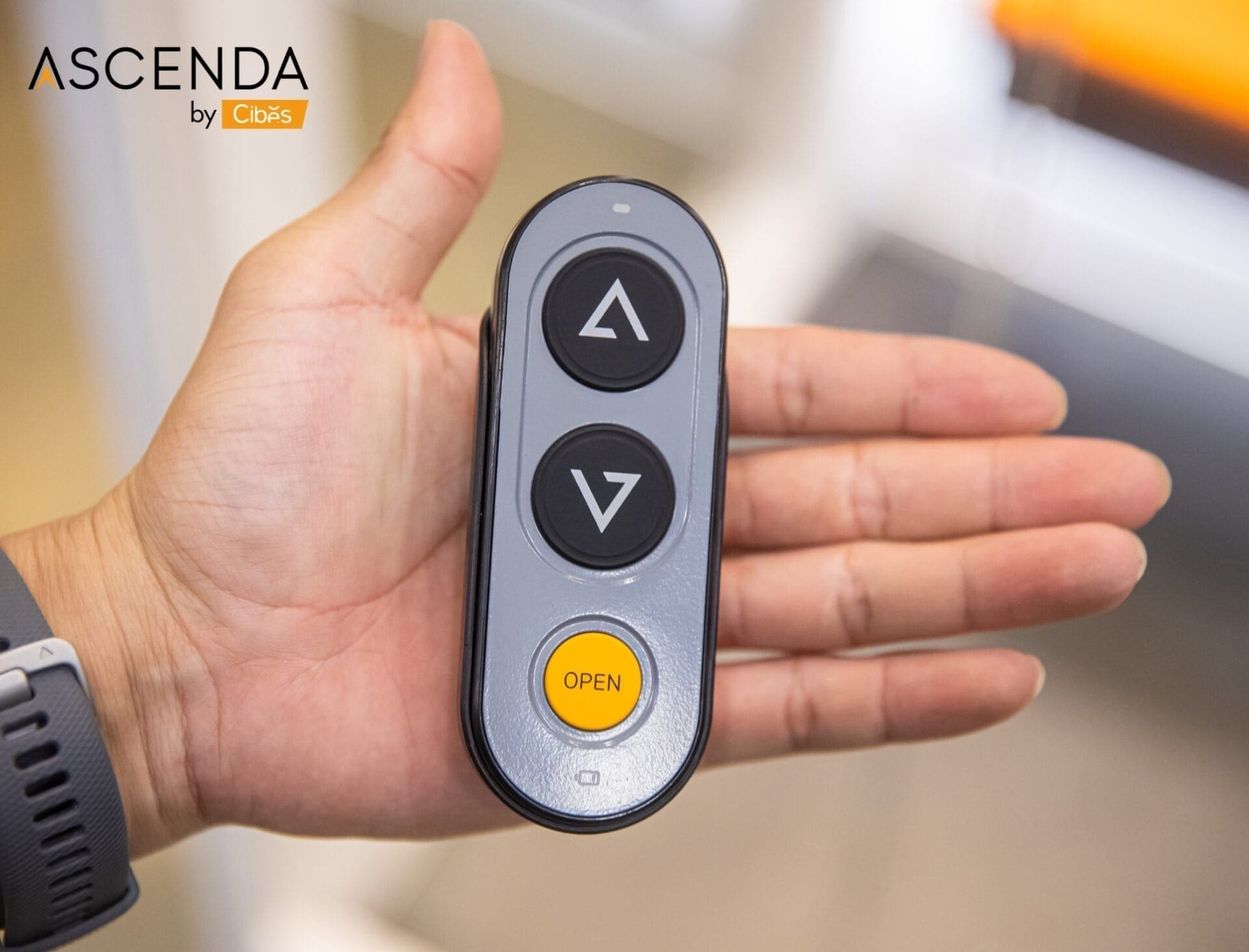

Ascenda Philippines Showroom Remote Control
Ascenda Philippines Showroom Emergency button
Ascenda Philippines Showroom Directory
Ascenda Philippines Showroom Built in

TECHNICAL SPECIFICATIONS

DRIVEN TYPE

  • EcoSilent 2.0

DRIVE SYSTEM

  • Screw-Driven

SCREW TYPE

  • Tyapezoidal, 24 mm

MOTOR

  • PMSM UltraQuiet (2.9 kW)

MAXIMUM TRAVEL

  • 4,270 mm

PIT DEPTH

  • 0 mm

LIGHTING TYPE

  • Automatic EcoSaving LED

POWER SUPPLY

  • 240V, 60Hz

MAXIMUM LOAD

  • 350 kg.

MAXIMUM SPEED

  • 0.15 m./s. (9 m./min)

MAINTENCE

  • 1 time per Year

WARRANTLY

  • 2 Years
