CHOOSE THE PERFECT SIZE FOR YOUR NEEDS

Basic information Ascenda Size M

Ascenda Lift Medium size (Size M) suitable for home users, is designed for 2-3 people. Wheelchairs cannot be brought into the cabin lift. Comes with full options. Ascenda Lift is easy to install within 5-7 days, does not affect the structure of the house, does not need a pit, and uses space very economically.

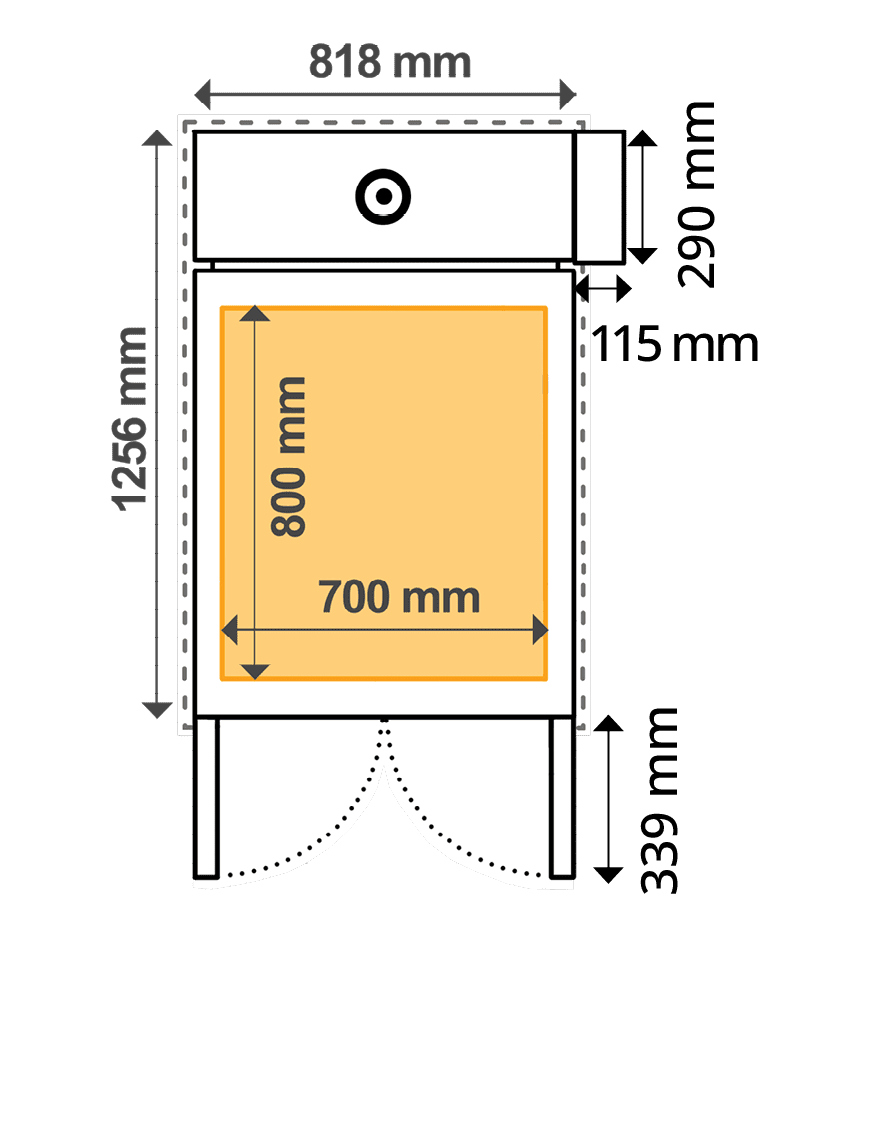

CHOOSE! Cut Out Size for Installations

CUT-OUT SIZE SIZE (MM)
STANDING SPACE 700 x 800
CABIN CUT-OUT 818 x 1,256
HATCH CUT-OUT 930 x 1,332
DOOR OPENING 678

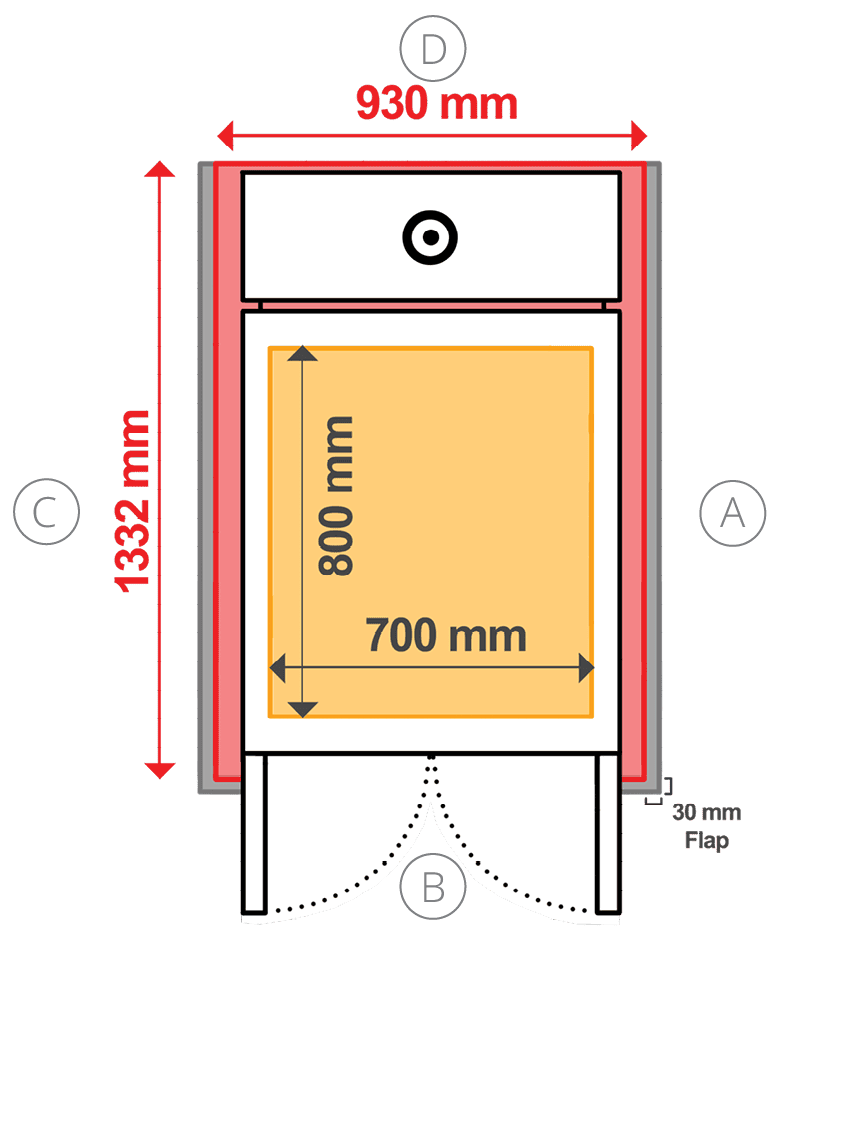

TECHNICAL SPECIFICATIONS Ascenda lift MTECHNICAL SPECIFICATIONS Ascenda lift M HATCH

CUT-OUT SIZE SIZE (MM)
STANDING SPACE 700 x 800
CABIN CUT-OUT 818 x 1,256
GATE CUT-OUT 1,130 x 1,349
DOOR OPENING 678

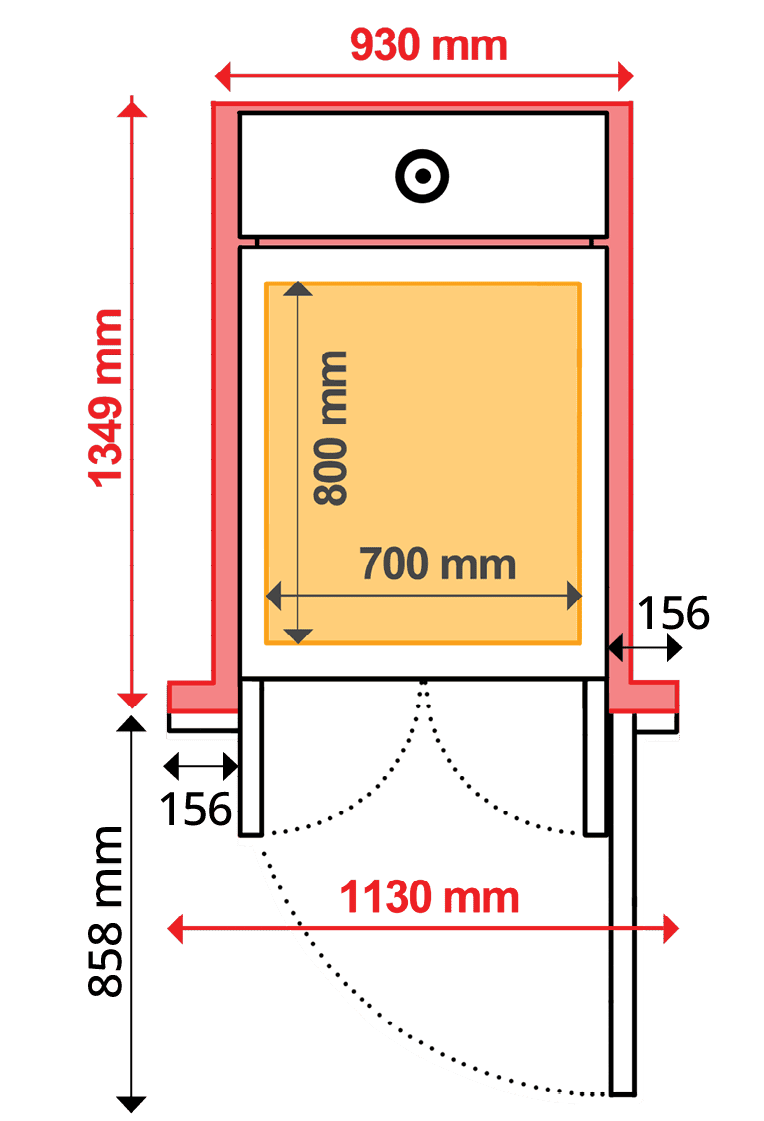

TECHNICAL SPECIFICATIONS Ascenda lift MTECHNICAL SPECIFICATIONS Ascenda lift M GATE

CUT-OUT SIZE SIZE (MM)
STANDING SPACE 700 x 800
CABIN CUT-OUT 838 x 1,290
HATCH CUT-OUT 930 x 1,332
DOOR OPENING 696

TECHNICAL SPECIFICATIONS Ascenda lift MTECHNICAL SPECIFICATIONS Ascenda lift M HATCH

CUT-OUT SIZE SIZE (MM)
STANDING SPACE 700 x 800
CABIN CUT-OUT 838 x 1,290
GATE CUT-OUT 1,130 x 1,349
DOOR OPENING 696

TECHNICAL SPECIFICATIONS Ascenda lift MTECHNICAL SPECIFICATIONS Ascenda lift M GATE

ANY OUR SIZE | ASCENDA LIFT

Organic Signal White

4size white angle L
4 size white Close straight L
4 size white straight L

Gothic Graphite Black

4size black angle L
4sizeBlack straight L
4sizeBlack straight M
ลิฟท์ขนาดอื่นๆ ของ Ascenda Lift

EXAMPLE INSTALLTIONS WITH ASCENDA MINIVATOR

GIF Ascenda UpDown

Through the floor installations : Ascenda Home Lift descends to the ground floor, there will be a technology called “Hatch” or additional cover between floors, sliding down to close off the 2nd floor so that there is no space and to prevent falling. We have designed the Hatch to close the gap to fit snugly into our home lift space perfectly for beauty and to save usable space in the house.

ติดตั้งลิฟท์ Ascenda Lift ข้างชั้น

Half Gate is when home lift is installed on the mezzanine or the middle of the stairs in the house to increase safety when the elevator moves down to the lower floor. The Half Gate will act to close the door on the upper floor and work together with the door of the home elevator immediately.
