CHOOSE THE PERFECT SIZE FOR YOUR NEEDS

Basic information Ascenda Size L

Ascenda Lift Large size (Size L) suitable for home users, is designed for 3-4 people and small wheelchairs can enter the cabin lift. Comes with full options. Ascenda Lift easy to install within 5-7 days, does not affect the structure of the house, does not need a pit, and uses space very economically.

CHOOSE! Cut Out Size for Installations

CUT-OUT SIZE SIZE (MM)
STANDING SPACE 700 x 1,000
CABIN CUT-OUT 818 x 1,456
HATCH CUT-OUT 930 x 1,532
DOOR OPENING 678

TECHNICAL SPECIFICATIONS Ascenda lift2 LTECHNICAL SPECIFICATIONS Ascenda lift2 L HATCH

CUT-OUT SIZE SIZE (MM)
STANDING SPACE 700 x 1,000
CABIN CUT-OUT 818 x 1,456
GATE CUT-OUT 1,130 x 1,549
DOOR OPENING 678

TECHNICAL SPECIFICATIONS Ascenda lift2 LTECHNICAL SPECIFICATIONS Ascenda lift2 L GATE

CUT-OUT SIZE SIZE (MM)
STANDING SPACE 700 x 1,000
CABIN CUT-OUT 838 x 1,490
HATCH CUT-OUT 930 x 1,532
DOOR OPENING 696

TECHNICAL SPECIFICATIONS Ascenda lift2 LTECHNICAL SPECIFICATIONS Ascenda lift2 L HATCH

CUT-OUT SIZE SIZE (MM)
STANDING SPACE 700 x 1,000
CABIN CUT-OUT 838 x 1,490
GATE CUT-OUT 1,130 x 1,549
DOOR OPENING 696

TECHNICAL SPECIFICATIONS Ascenda lift2 LTECHNICAL SPECIFICATIONS Ascenda lift2 L GATE

ANY OUR SIZE | ASCENDA LIFT

Organic Signal White

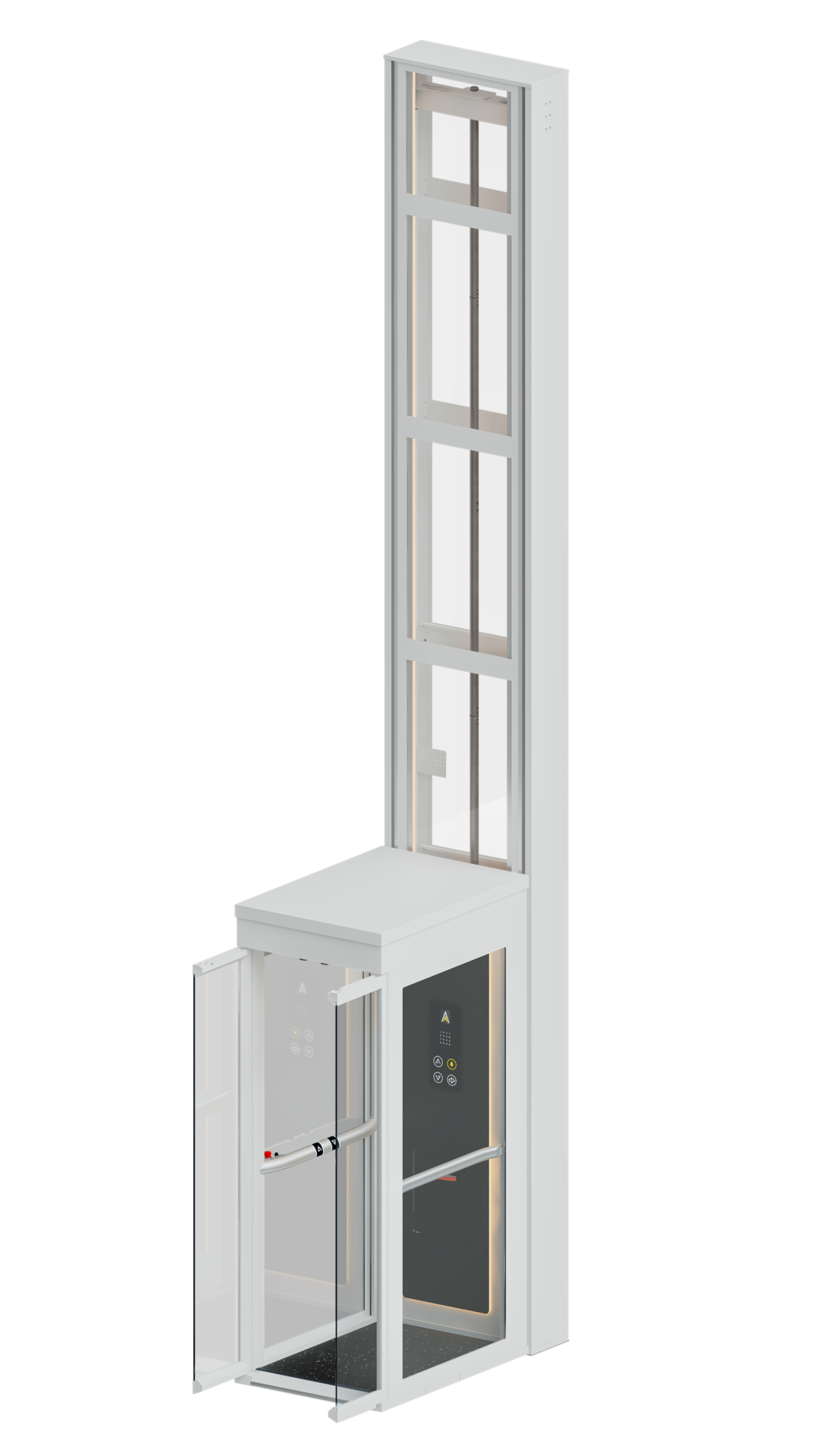

4size white angle L

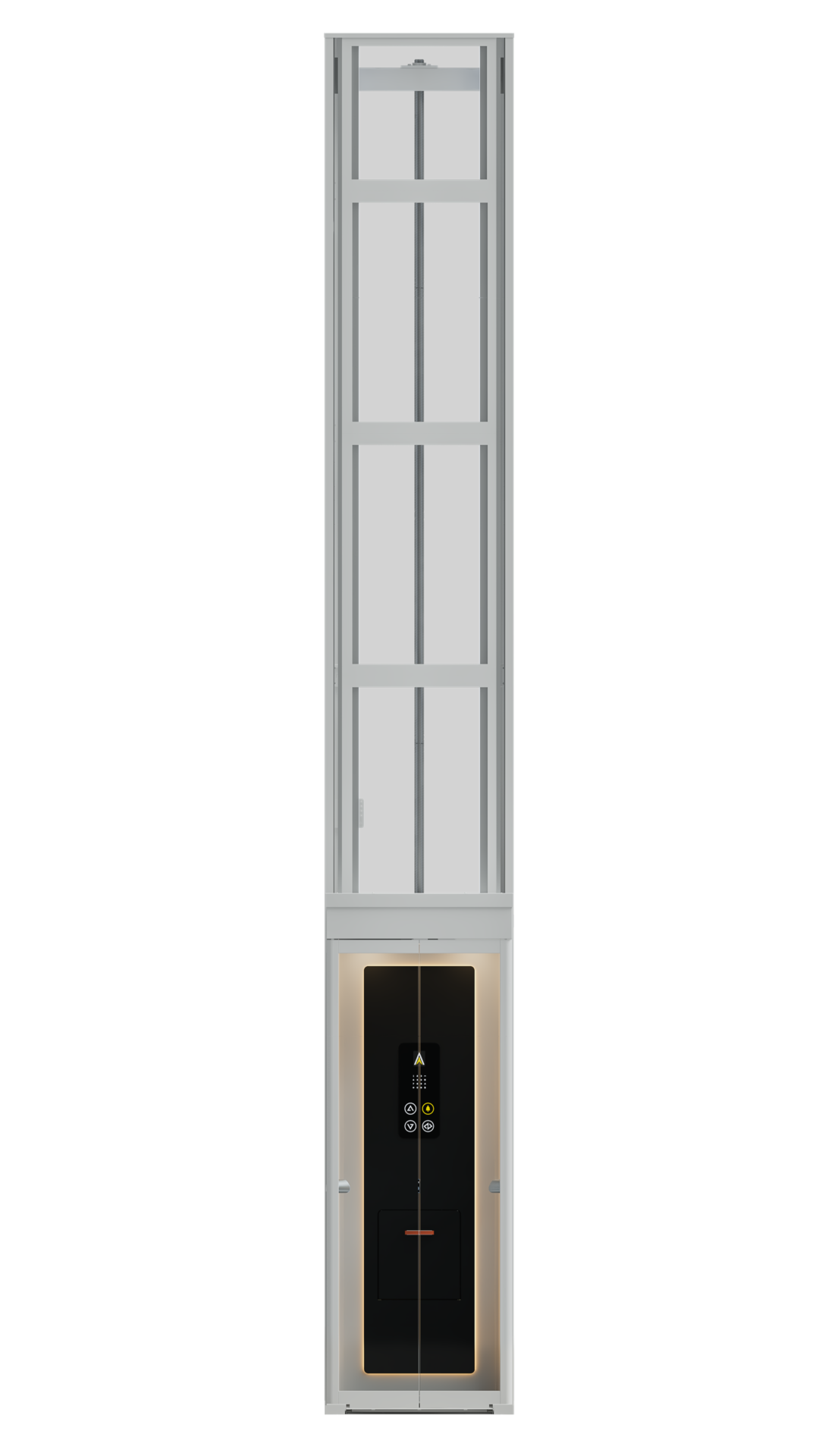

4 size white Close straight L

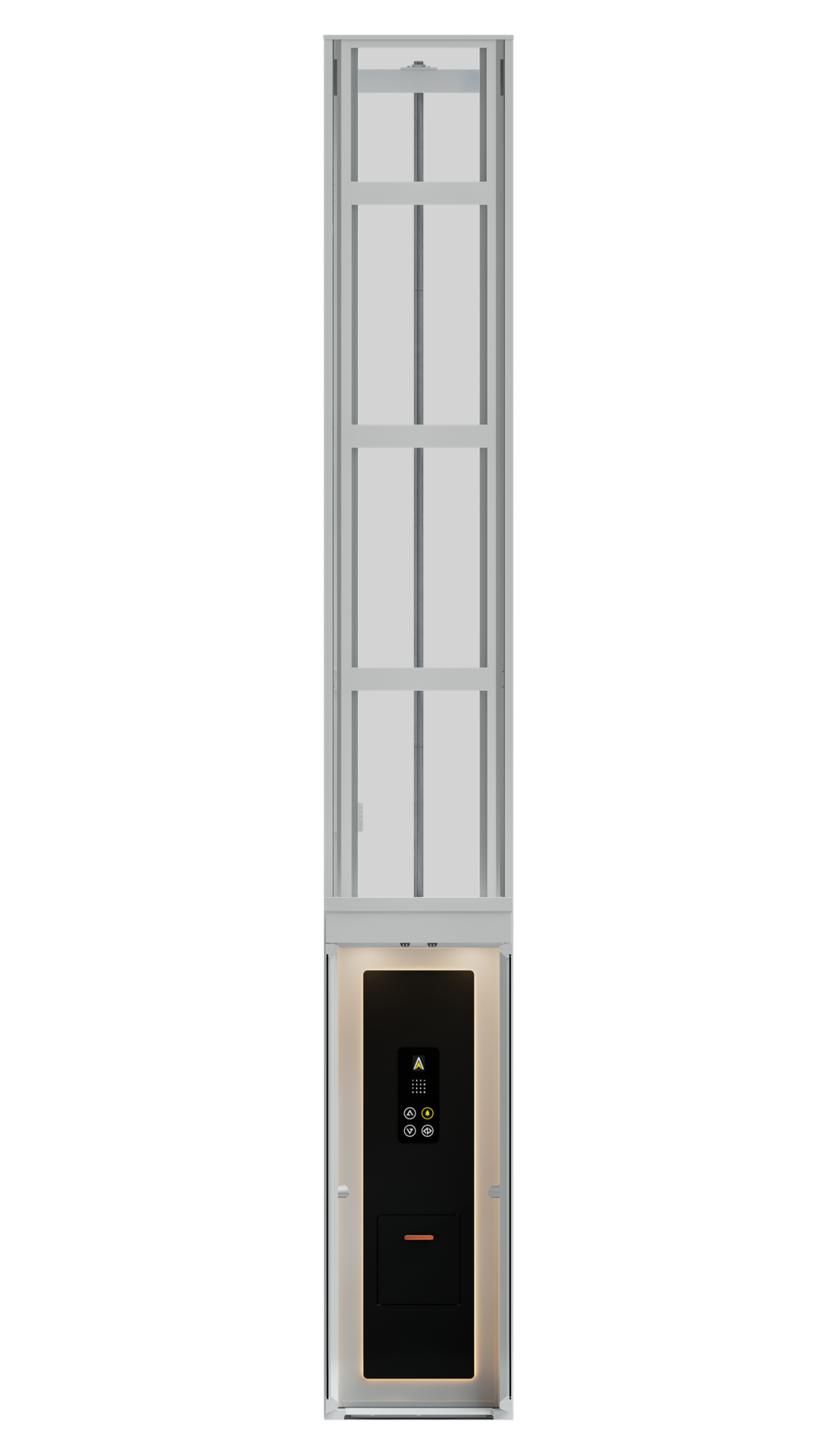

4 size white straight L

Gothic Graphite Black

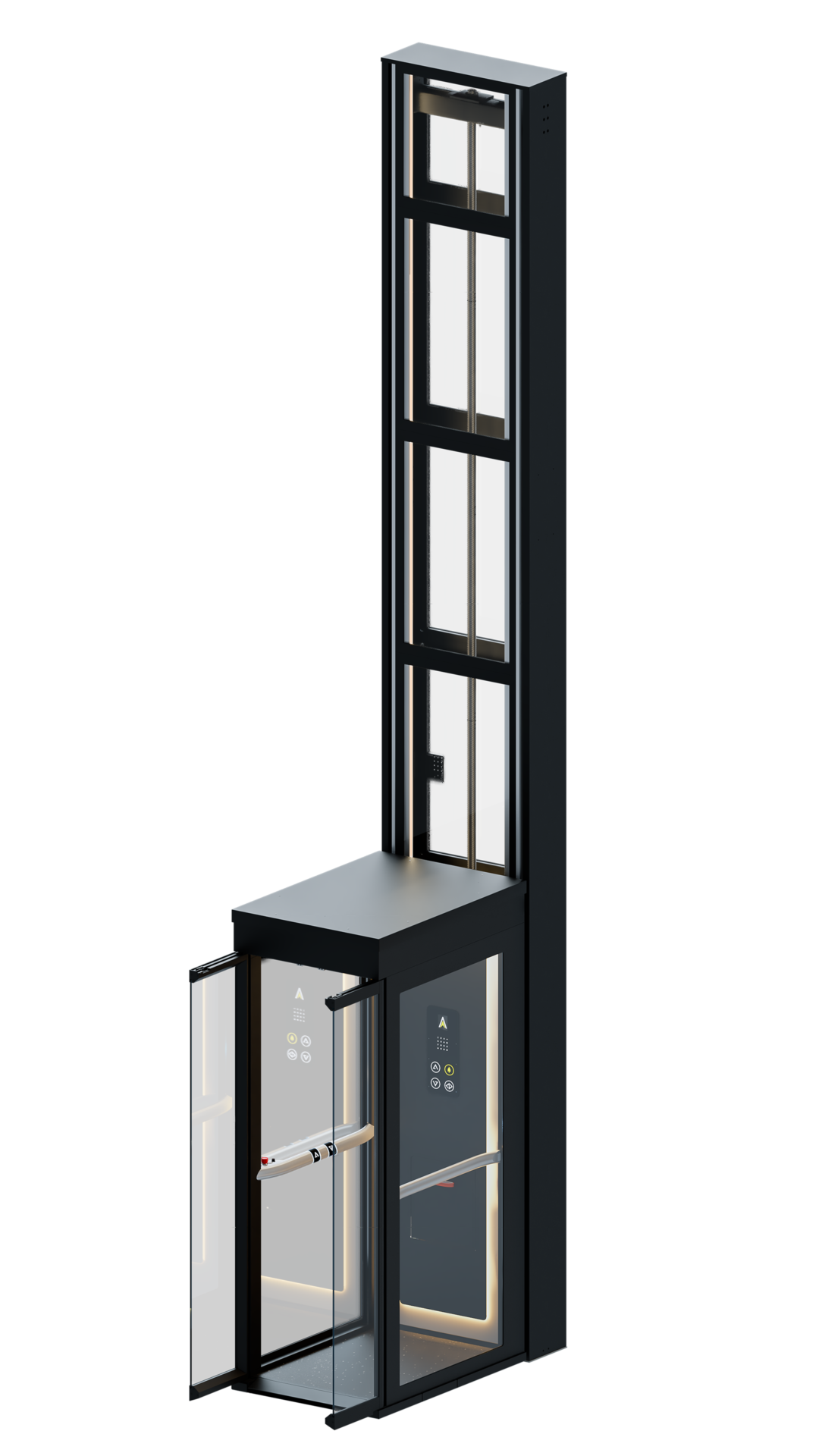

4size black angle L

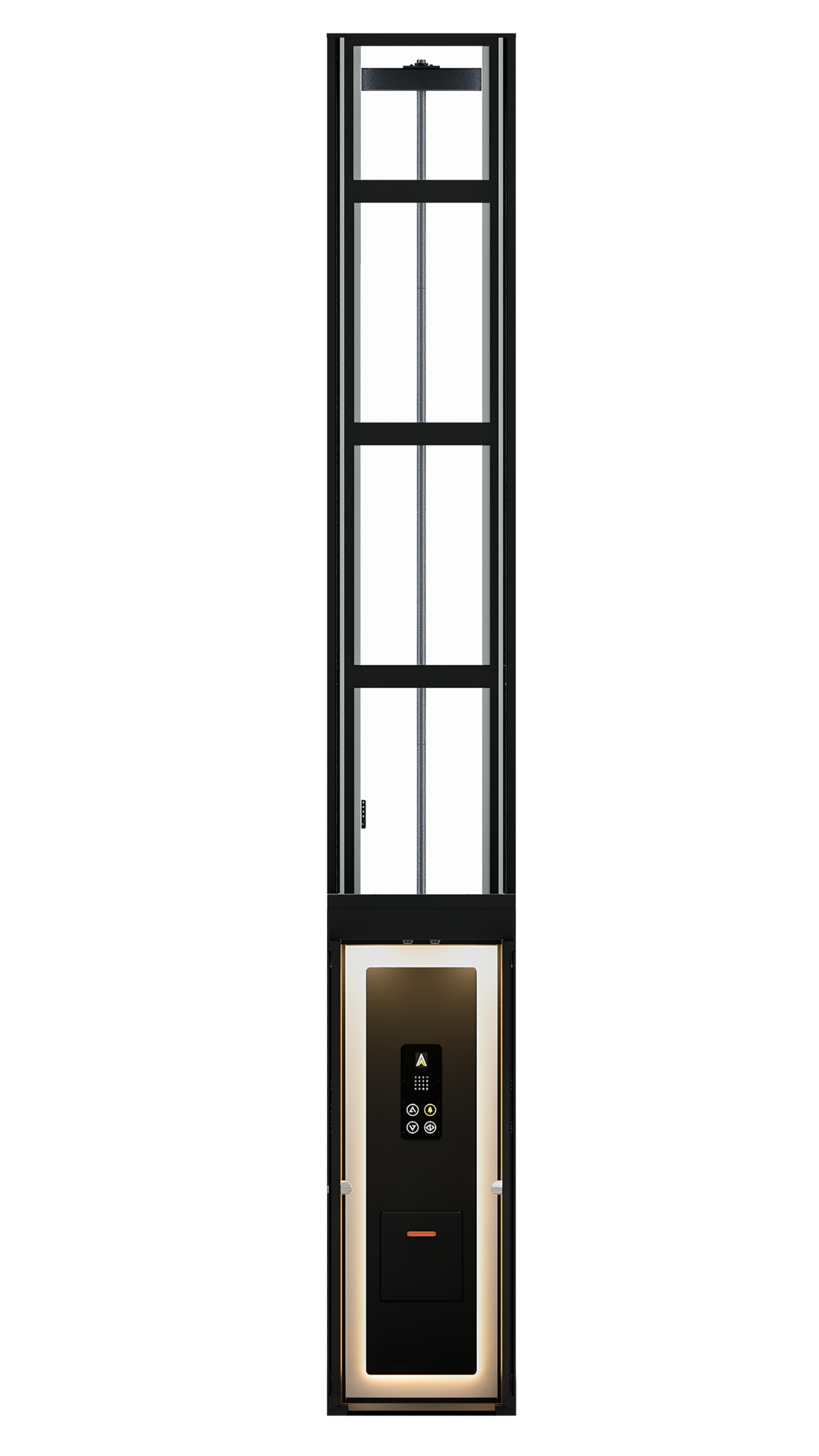

4sizeBlack straight L

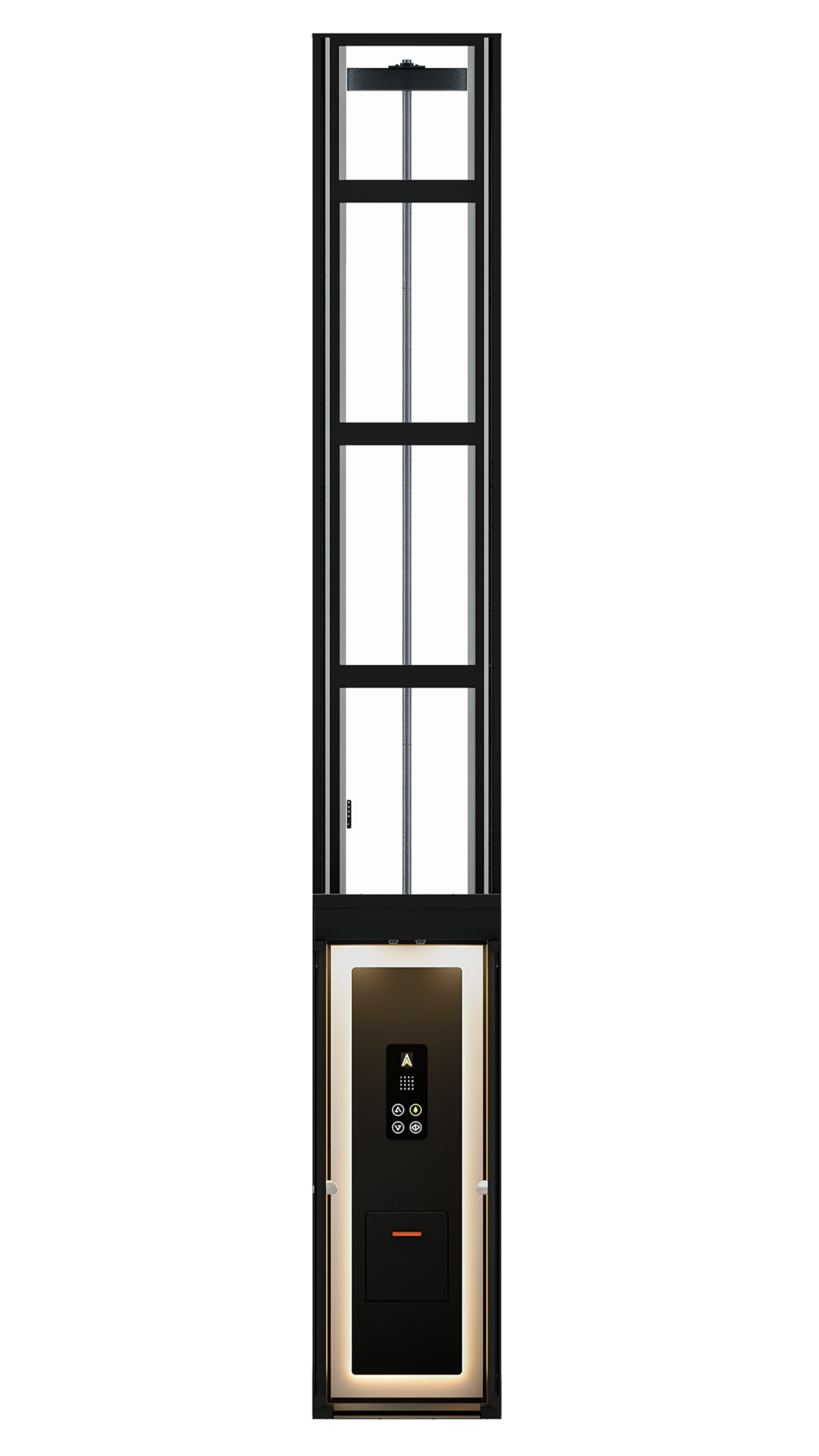

4sizeBlack straight M
ลิฟท์ขนาดอื่นๆ ของ Ascenda Lift

EXAMPLE INSTALLTIONS WITH ASCENDA MINIVATOR

GIF Ascenda UpDown

Through the floor installations : Ascenda Home Lift descends to the ground floor, there will be a technology called “Hatch” or additional cover between floors, sliding down to close off the 2nd floor so that there is no space and to prevent falling. We have designed the Hatch to close the gap to fit snugly into our home lift space perfectly for beauty and to save usable space in the house.

ติดตั้งลิฟท์ Ascenda Lift ข้างชั้น

Half Gate is when home lift is installed on the mezzanine or the middle of the stairs in the house to increase safety when the elevator moves down to the lower floor. The Half Gate will act to close the door on the upper floor and work together with the door of the home elevator immediately.
